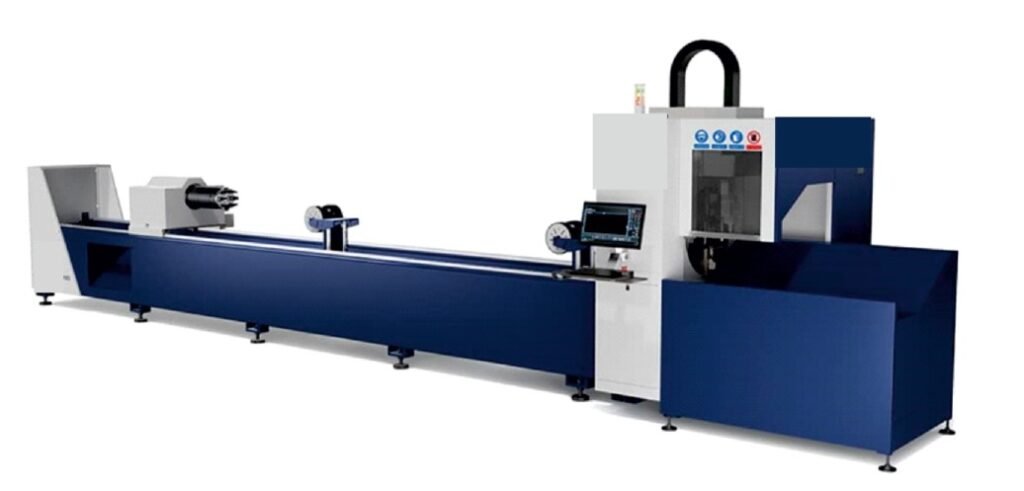

| Laser Cutting Machine Model | Laser Tube Cutting Machine |
|---|---|
| Laser Power | 1500W-6000W |
| Laser Type | Fiber Laser Source Max/IPG/Raycus |
| Maximum Machine Tube Length | ≤6500mm |
| Maximum Speed | 100R/min |
| X, Y axis Positioning Accuracy | ±0.05mm/m |
| X, Y axis Repeated Positioning Accuracy | ±0.03mm |
| Maximum operating speed | 100m/min |
| Maximum operating acceleration | 1.0g |
| Maximum load (single tube) | 260kg (≤43kg/m) |
| Clamping range | Round: φ10-φ230mm; Square: □10-□230mm |
| Machining material wall thickness range | ≥0.8mm |
| Tail length | ≥80mm (The front card avoids and the rear card is held separately) |
| Machine dimensions approx. (L*W*H) | 9700mm × 2300mm × 2500mm |
